Accessories

SHR-L

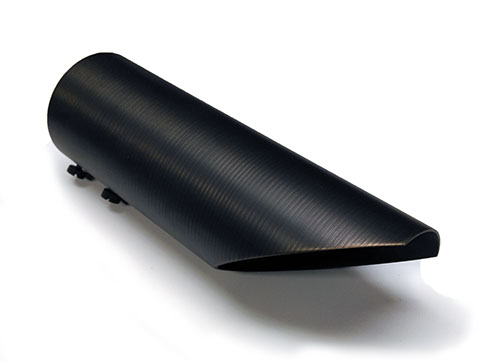

SHR-L Extended Shroud

7.25" soild brass extended shroud.

For use with : OB-1, DL-1

CATALOG

Extensions

Solid brass stem extensions. Create a seamless extension for many OmegaPro fixtures.

Stem extensions are available in three lengths and are ordered separately from the fixtures. They DO NOT include stake or socket.

ORDERING GUIDE

S06 - 6" extension

S12 - 12" extension

S18 - 18" extension

CATALOG

OB Series

BRS-1

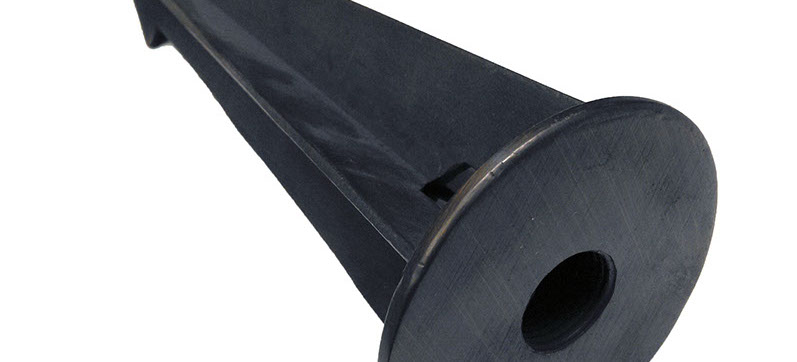

BRS-1 Solid Brass Stake

8.5" Solid brass replacement stake for OmegaPro fixtures.

For use with : OB series, AL series, DL series

CATALOG

BRS-2

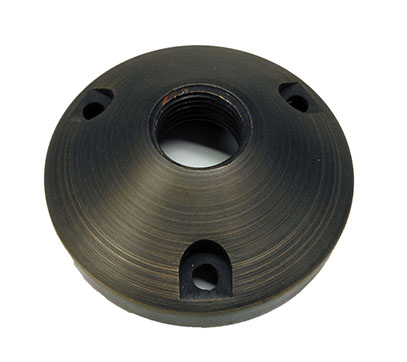

BRS-2 Solid Brass Surface Mount

2.75" diameter Solid brass surface mount plate. Comes with 3 stakes or you can use screws to mount to a surface.

For use with : OB series, AL series, DL series

CATALOG

LV Wire

CATALOG

Low Voltage Landscape Wire

Low voltage underground lighting cable (65/30) BC .045" black with PVC insulation. RoHS compliant, 60C direct burial, sunlight resistant.

ORDERING GUIDE

12/2 AWG

12/2 LVLC-100 - 100'

12/2 LVLC-250 - 250'

12/2 LVLC-500 - 500'

14/2 AWG

14/2 LVLC-100 - 100'

14/2 LVLC-250 - 250'

14/2 LVLC-500 - 500'

LV Connectors

CATALOG

Low Voltage Connectors

ORDERING GUIDE

Small Blue

Medium Black

Large Brown

Min. 1 #18 and 1 #20 wires, Max. 2 #14. Max. 30 volts copper and/or aluminum wire solid or stranded. Package of 25 or 200.

Min. 2 #18 wires. Max. 3 #10. Max. 30 volts copper and/or aluminum wire solid or stranded. Package of 15 or 100.

Min. 3 #18 wires. Max. 3 #10. Max. 30 volts copper and/or aluminum wire solid or stranded. Package of 10 or 50.

TLC10-25 - Pack of 25

TLC10-200 - Pack of 100

TLC20-15 - Pack of 15

TLC20-100 - Pack of 100

TLC30-10 - Pack of 10

TLC30-50 - Pack of 50

Control

Lighting Control Options

ORDERING GUIDE

GM-1

CATALOG

GM-2

Photocell

Digital Timer

Gemini Astronomical WiFi Timer

PH-ST15

ST-38424

GM-1/2

Easy to install photocell turns lights on and off at sunset and sunrise.

Simple digital timer that can be used to easily set up a simple timer schedule.

WiFi SMART SWITCH -- Control your lights from your android or apple smart phone with the free APP!

Range

Turn-On

Turn-on/off ratio

Temp. Range

Dimensions

Broad surface

1-3fc Adj. up to 10fc

1:3

-40°-158°F

2"x1.5"x3" (2" stem)

Range

On/Off

Security Mode

Override

Once daily/repeats

Can select hour and minute for on/off

Yes

Switch to always on mode

Voltage

Wattage

Functions

Control

Dimension (WxHxD)

100-125VAC / 60 Hertz

Up to 1000W tungsten

Switch on/off

7 days programmable

Timer/random timer

Set for holidays/security

Wi-Fi/3G/4G

GM-1 : 2.40"x1.39"x3.27"

GM-2 : 2.375"x1.75"x3.5"

Easy integration with IFX line of products. Including OmegaPro TR Series Transformers

SPEC SHEET

GM-1 GUIDE

GM-2 GUIDE

SHR-L

Extensions

BRS-1

BRS-2

LV Wire

LV Connectors

Control
